✧✦Catherine✦✧ @whitequark@social.treehouse.systems
· 2mo ago

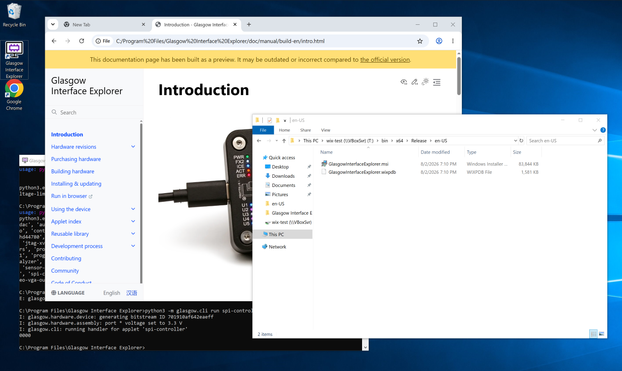

in about a day's work i learned WiX and built an MSI installer for #GlasgowInterfaceExplorer! look at it, it includes everything (Python, Yosys, nextpnr-{ice40,ecp5}, Python libraries, the manual) in a package that is just under 90 MB and fully self-contained. and we cross-build everything from Nix using a combination of MinGW, Wine, and a lot of elbow grease this isn't quite complete yet (among other things it doesn't yet automatically install the prepackaged wheels) but it's pretty close
52
7
9
0
turbocooler @turbocooler@infosec.exchange
· 2mo ago
The thing I'm excited the most about the new #GlasgowInterfaceExplorer is the way it allows you to travel while occasionally tinkering with random hardware you find along the way. It's like a box of tools you can manage with a Python script (or just shell commands for simple tasks) that you can put in your pocket.
0
0
0
0
✧✦Catherine✦✧ @whitequark@social.treehouse.systems
· 2mo ago

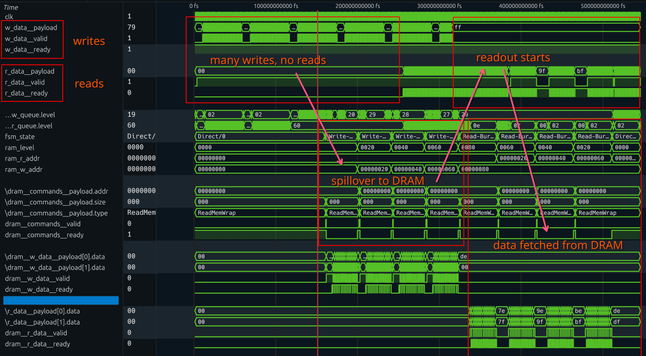

check out this new primitive I'm working on for #GlasgowInterfaceExplorer! see alt text for an explanation i'm calling it "HyperFIFO"; it has the same interface as a normal synchronous FIFO, but if you exceed the small amount of buffer space within (generally under 1 KB), the contents spill into external DRAM, where up to 64 MB of spikes (about 2 seconds of USB 2.0 bandwidth) can be buffered this enables logic analyzer type applications on revC and revD
65
6
11
0
